Easy to use As technology advanced, we have kept the warmer simple Et easy to use with one touch controls.
Focused HeatingThe heater with reflector makes it easier to work with the baby by efficiently providing even heat distribution across the cradle and not into the surrounding environment.
Servo control mode Servo control is an electronic feedback system which functions as a thermostat to maintain a constant temperature at the site of Skin Probe by regulating the heat output of Radiant Warmer maintaining a constant abdominal Skin temperature between 36.5 Er 37.0°C is the simplest way to provide a "thermoneutral" environment, minimizing the no. of calories needed to maintain normal body temperature & reducing the risks of cold stress or overheating. Servo control is the only acceptable method of heat regulation for the Infant cared for under a Radiant Warmer.
Air control mode Air control is an electronic feedback system which functions as a thermostat to maintain a constant temperature of baby cradle by regulating the heat output of Radiant Warmer. It also acts as a WATCH DOG as Air over temperature cuts off heater even if the Warmer is operating in Servo mode.
Manual mode The Manual mode allows the Warmer to be kept 'baby ready' without nuisance alarms. When needed the Warmer provides safe, powerful Er controlled warming to restore the temperature drop experienced by the baby immediately after delivery.

Easy access of Infant from all sides with thick acrylic collapsible side panels.
Acrylic baby tray with Infant's Head up / down facility & foam mattress.
Provision for positioning X-ray cassette.
S. S. Tray with slot to use undersurface Phototherapy.
Swivelling warming source for taking X-ray.
Consist of CERAMIC INFRA RED / SILICON QUARTZ GLASS HEATER.
S. S. Reflector with safety grill designed such to achieve uniform temperature & easy cleaning without any electrical shock hazzard.
Instrument tray, pole for Infusion pump & I.V. Stand.
Examination lamp with sufficient illumination to access accurate Infant colour during procedures.
M. S. Fabrication with powder coated paint.
Mounted on castors for easy mobility.

Suction: Electrical operated suction unit with pressure adjustment facility (0-110 mm Hg) with unbreakable & autoclavable jar.

Inline Manometer: Monitors oxygen pressure delivered through Resuscitation Bag.

Intubation: Laryngoscope with 0 & 1 straight blades, disposable E. T. Tubes with slip joints.

Click On The Links Below To View Details:

To download catalog click here

Send Enquiry

Enter The Code

Generate another code

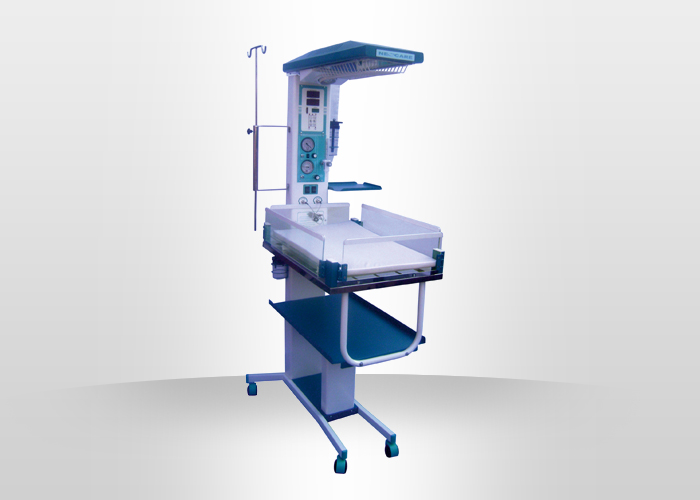

Neonatal Resuscitation System
